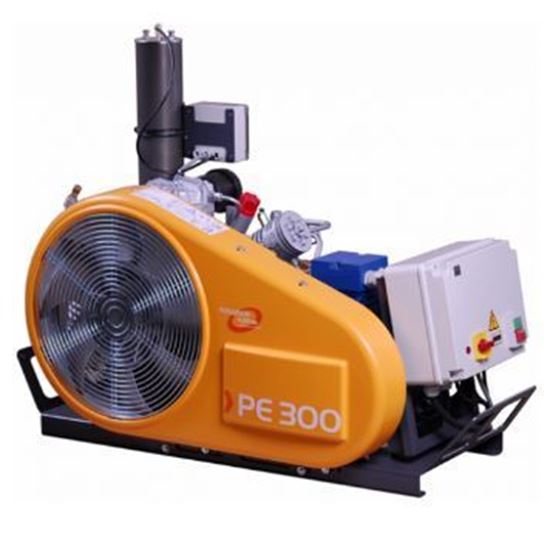

POSEIDON PE 200/250/300 TE

The PE 200 / 250-TE/TB models offer the optimum weight / price ratio. Owing to their compact construction, the plants are easy to transport and to load onto vehicles.
The oil pump allows inclinations up to 15º, therefore making these models most suitable for use on board of ships.

Robust compressor block

Piston rings made of a newly developed hightech synthetic material offer outstanding wear values.
Oil cooling in the final compression stage for minimal wear and tear and for a longer life.
Interstage and afterstage coolers made of stainless steel against corrosion.
Robust low pressure oil pump with oil filter for effective lubrication and extended oil change intervals.

Automatic operation

A control in conjunction with the final pressure cutout controls the independent switching-off of the compressor.
Convenience in use is achieved by means of an automatic condensate drain: The condensate is drained when the unit is switched on and off, as well as at regular intervals during operation.
Elapsed time meter for reading off the pending maintenance and service intervals.

P-Purification system

secures breathing air of superior in quality to DIN EN 12021.
Our original cartridges safely remove humidity, oil and pollutants from the compressed air.

Control at a glance

The B-TIMER (optional) for monitoring required filter changes and maintenance intervals.
The minicomputer counts the operating hours and indicates reliably the remaining life time. Pending cartridge changes or maintenance intervals are conspicuously indicated.

PE 200/250/300 TE

• 200-300 l/min
• 225 / 330 bar
• Compact
• Easy operation
• Breathing air acc. to DIN EN 12021
