Podvodna puška B 32 full mimetic komplet

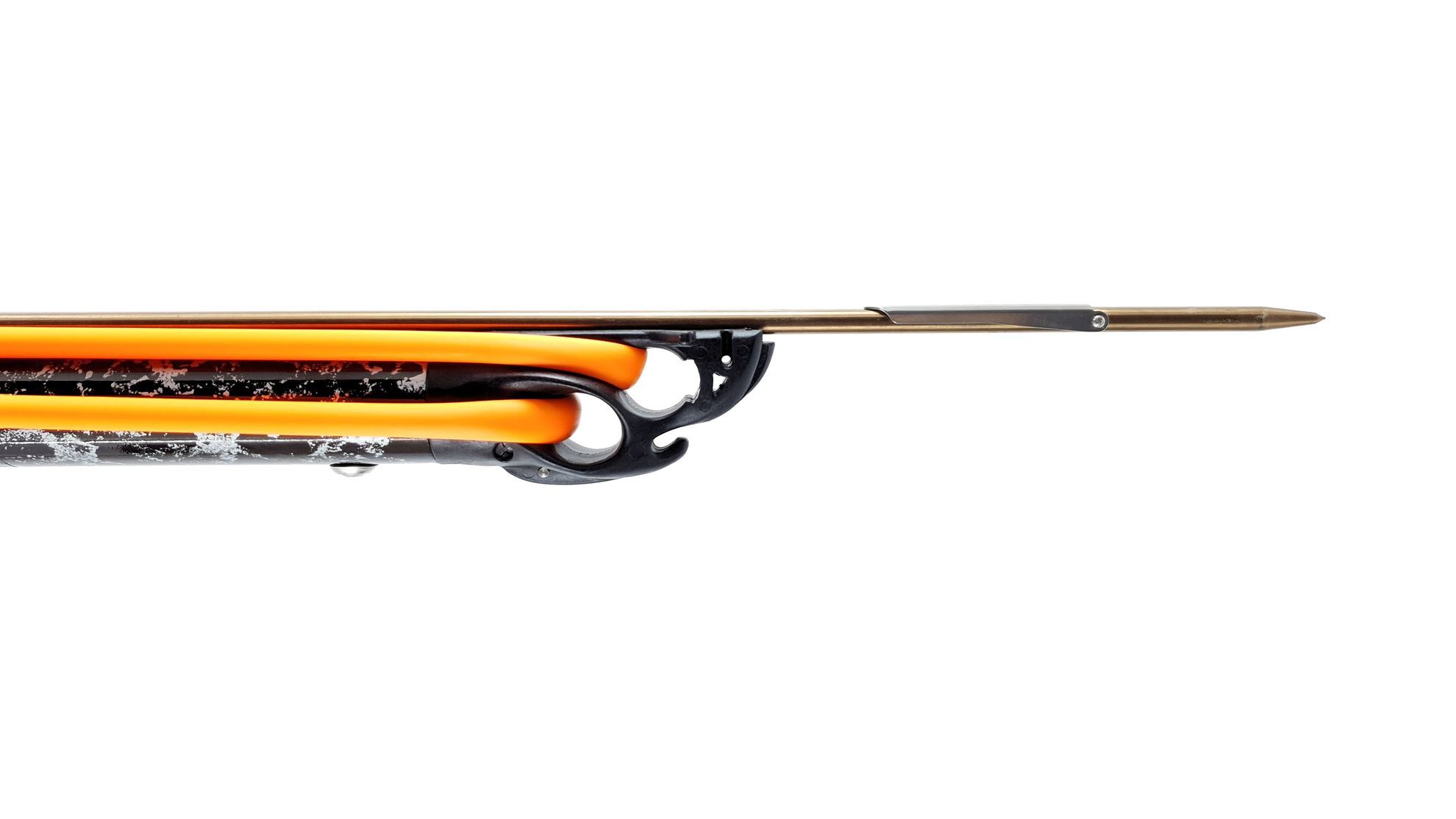

Slika Podvodna puška B 32 full mimetic  komplet
Nove puške za podvodni ribolov vrhunskih performansi, visoke kvalitete, proizvođač MEANDROS. KONFIGURACIJA: anatomska ručka desni grip, vodilica, okruglo tijelo, glava otvorena, (2X16mm)cirkularne gume, strelica s kukicama (7.0mm),jedno pero, mulinelo, konop

€310.00

Dostupnost: Dostupno

Proizvođač: MEANDROS

B 32 - full complete camo


Manufacturer:


• Tube material: Aeronautical aluminum alloy.
• Tube dimensions: 29.0mm ID & 32.0mm OD.
• Tube cut shape: Round with supporting extensions / multi-sided.
• Wall thickness: 1.5mm - 2.1mm.
• Buoyancy: + 4,16gr / cm.
• Baldness possibility: Yes.
• Rail type/height: Trapezium embedded / 16mm from center of pipe.
• Pipe protection: Fully anodized per piece.
• Color: Silver camo (hand paint).
• Handle: Leader B-32.
• Handle profile: Extremely low.
• Mechanism: Inverted , full inox, heavy duty, innovative         design. (pin roller system upon request).
• Line releasse: Ambidextrous horizontal.
• Handle adjustment in the pipe: Male.
• Sealing: With O-ring 20x4.5. / test 10 bar.
• Grip: Right, anatomic, non-slip, detachable.
• Safety: Recessed in the trigger guard.
• Loading pad: Anatomical with excellent line sight.
• Muzzle: B 32 / id 29.
• Muzzle type: Open for 2 circular bands.
• Rubbers: 2x14.0mm tied, circulars rubbers.
• Wishbone: Tied / wishbone cord.
• Shaft: 6.75mm / shark fin / single barb.
• Reel: Standard plus.
• Cord: 1.8mm Polyester

The B-32 is the robust and the more evolved line of spearguns that the company has to offer that responds to the needs of the evolving spearo and demanding hunters that are not satisfied with simple tubular spearguns.

Particular attention has been paid to all parameters that make up a manufactural quality product that is easy-to-use and offers unprecedented ballistic performance levels. It has been studied to overcome the problems and weaknesses of common aluminum or carbon tubular spearguns, such as intense recoil, deformations, buoyancy and offers long-lasting reliability and excellent operation of all its mechanical parts, etc.

It consists of the top international most advanced ergonomic LEADER handle with a particularly low profile with a non-slip, anatomic grip, arming heel, reduced friction spear guide, water balance compartment, ambidextrous monofilament guide (line release), multi-purpose bore, etc.

Accompanied by the most advanced design inverted full inox / heavy duty trigger mechanism with minimal weight and sensitivity. The triggered extends the loading length by +9.5 cm it has an ambidextrous mechanical side fully functional line release. A milestone and benchmark is revolutionary (pin roller system - upon request) ιt offers reduced friction with zero wear at the point of contact with the bar but also distributes the load received from the bar at 3 points. Two contact points at the housing and one point at the hook which now accepts a small part of the pressure exerted and not 100% of it. The hook now has a much lower pressure at the point of contact with the trigger, with the result that the pressure exerted on the trigger to release the shaft is much less than a classic type reverse mechanism.

The angle of inclination of the oval hole which slides inside the engagement shaft reduces and reverses the torque by determining the pressure load to be applied to the trigger. The strong negative inclination of the oval hole can even reset the applied pressure on the line release extension exercised on the trigger. This system gives us the advantage of simplifying the construction without compromises and sacrifices on the trigger sensitivity issue caused by the pressure load at the point of contact with the engagement hook and thus bypasses disadvantages of more complex systems with roller bearings contact with the trigger and with additional components used in the assembly and operation intended regarding the trigger sensitivity of the mechanism.

The multisided tubular barrel is made of aluminum alloy with an integrated trapezium shaped, hydroplaning guide, which delivers stiffness with a minimum weight of positive buoyancy +4.16 gr / cm. Complete anode protection per piece and not per bar. The thickness of the barrel wall perimetrically for greater stiffness is uneven (1.50mm - 2.10mm depending on the stress point) overcoming the rest of the circular tubes one might find in the market.

Stiffness coupled with the absence of recoil, achieves shot precision and top ballistic performance at a distance from the tip of the spear to 5 times the length of the barrel. Much of the energy from the bands to the rod is absorbed and is lost in the recoil when the mass of the barrel and gun is generally disproportionate to the setting. The B - 32 is a sturdy and robust rig that guarantees rigidity with minimal energy loss from recoil. Similar performance with shot quality cannot be obtained from a common barrel of 28x1mm aluminum or carbon 30 × 2 mm. In order to maintain stiffness out of barrel too, attention has been given to the grip / muzzle attachment points of the barrel in terms of geometry and static materials, so that at high load the deformation at the connection points is almost zero.

The open type 2 – hole muzzle has a particularly elegant hydrodynamic design that makes the movement of the gun in any direction a simple easy task. The double bands are digested in its body in a different position and height, which contributes to agility, responsiveness, avoidance of vibration and friction between them. The trapezoid-shaped spear guide contacts the spear at 3 points, giving hydro-reduction with reduced friction.

Noteworthy is the minimalist high strength line guide that "hugs" the thread into the body of the muzzle while preventing jams and oscillations during unwinding and movement, while keeping the thread always close to the barrel body and preventing uncontrolled flow of. The Bungee hole is positioned to prevent jams, oscillations at the line lengths by bringing the Bungee to the barrel side line where it works perfectly in harmony with the trigger mechanism and the muzzle line guide.

Its base can adopt all the reels that we produce.

It is produced in lengths of: 85, 95, 105,115, 130 cm.
